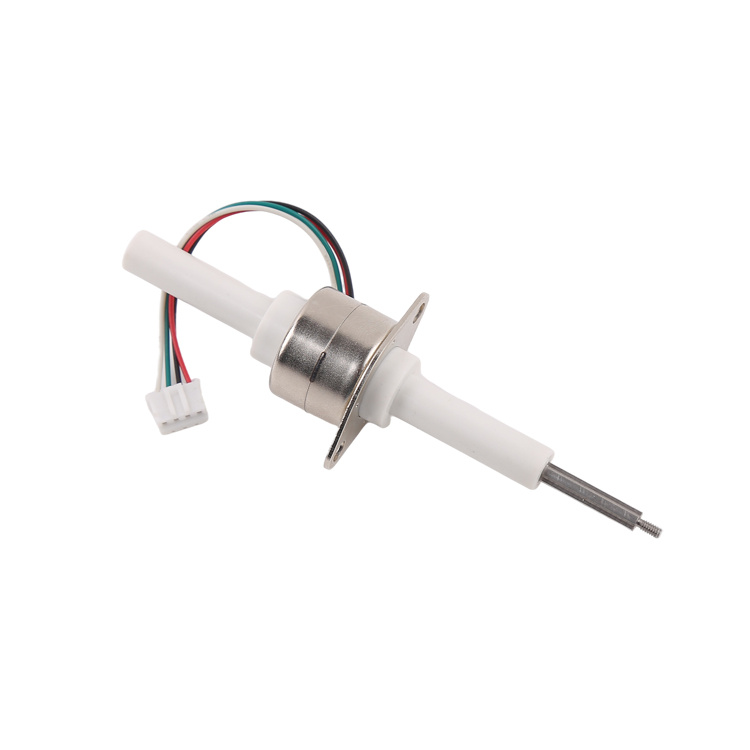

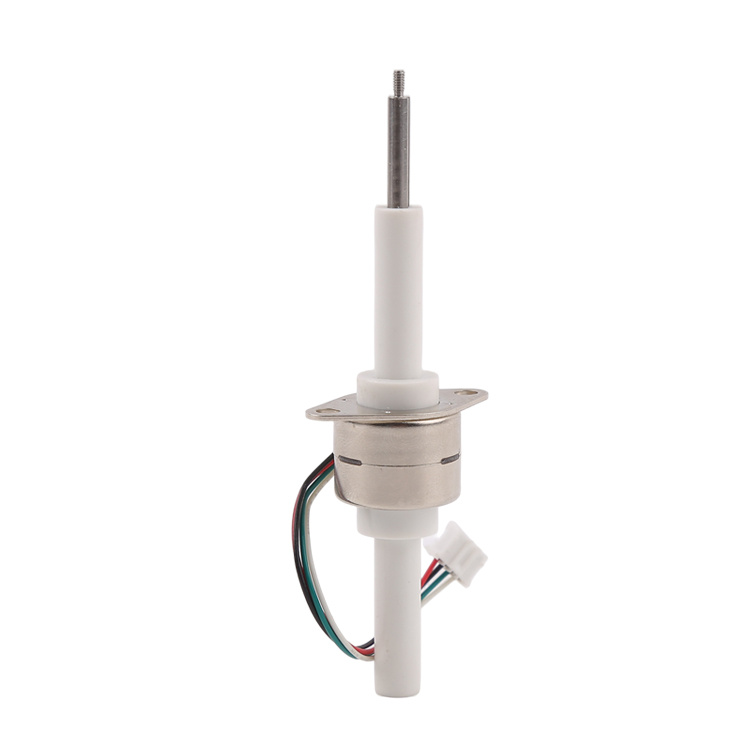

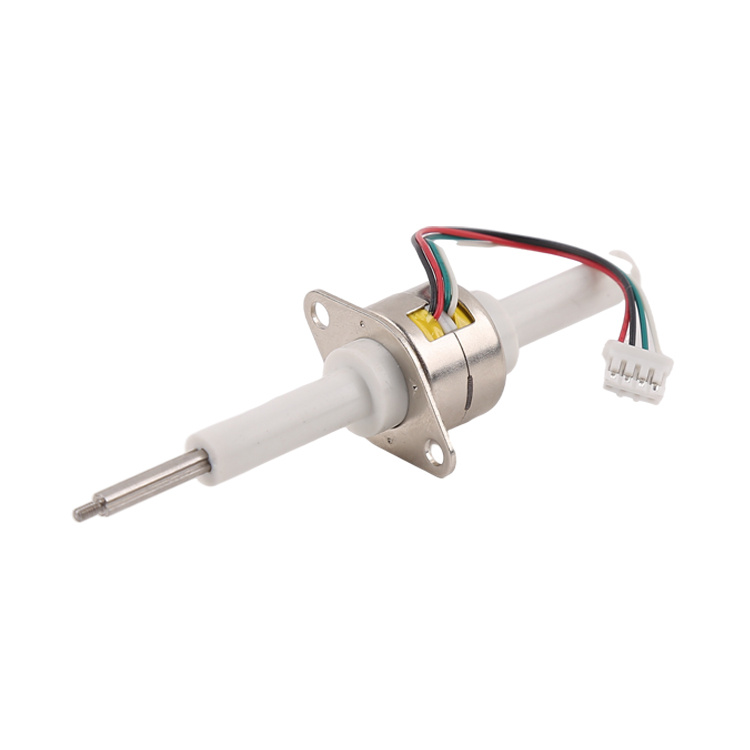

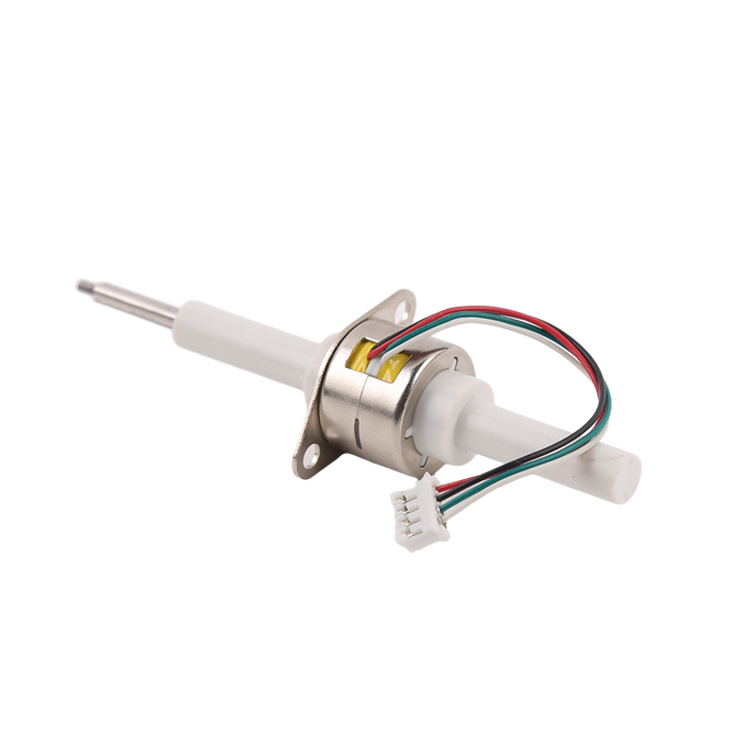

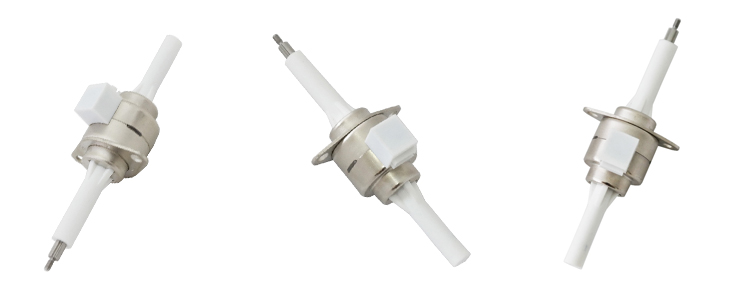

SM20-020L-LINEAR SERIAL is a stepping motor with guide screw. When the rotor operates clockwise or counterclockwise, the guide screw will move forward or backward.
The stepping angle of the stepping motor is 7.5 degrees, and the lead spacing is 0.6096mm. When the stepping motor rotates for one step, the lead moves 0.0127mm.
This product is a patented product of the company. It converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.
At the same time, the external wiring part is usually the connecting wire and outlet box, and the bare needle can also be customized according to customer needs.
Our team has more than 10 years of experience in stepping motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

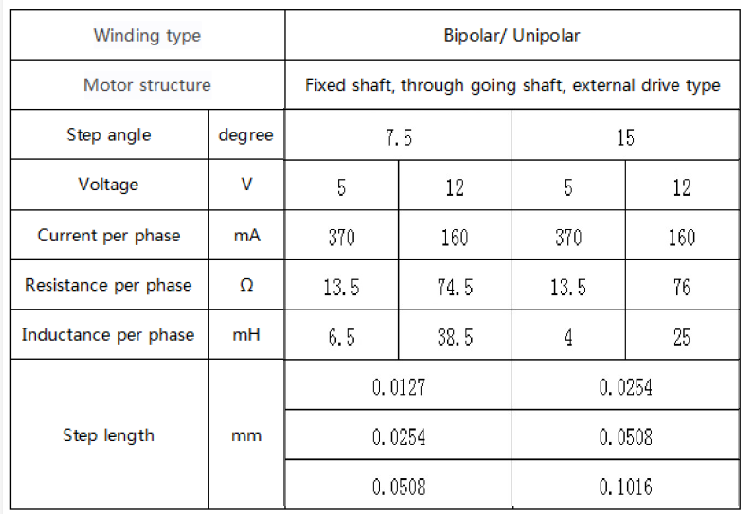

| Product Name | 20mm Linear Stepper Motor |
| Model | Vsm20l-048s-0508-32-01 |
| Resistance | 13ω±10% |
| Pull In Frequency | 670pps |
| The Mark Thrust | 600g |
| Inductance | 4.5ref (Mh) |

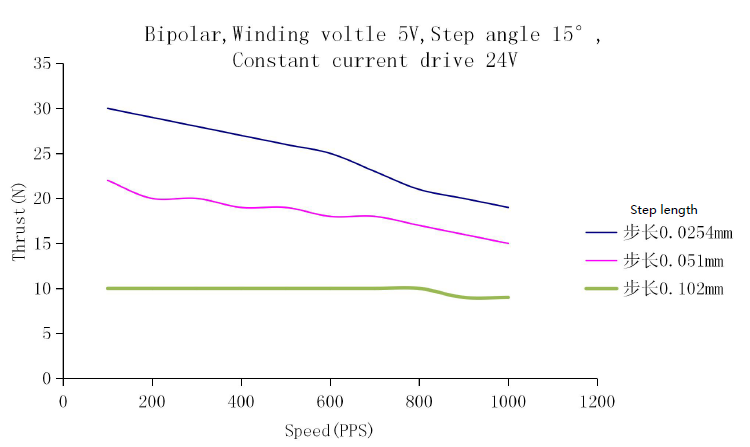

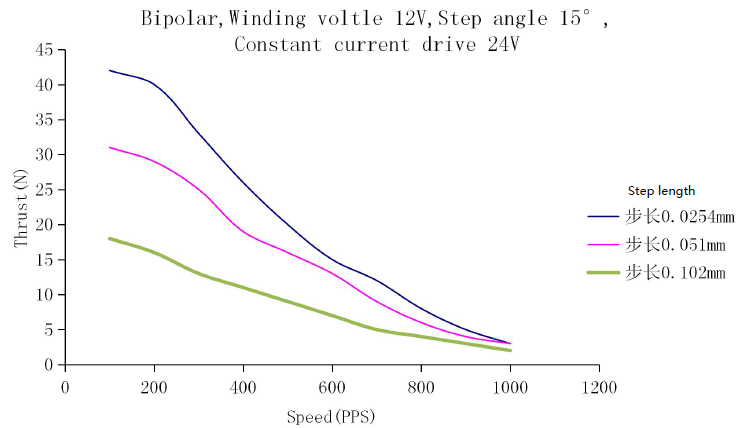

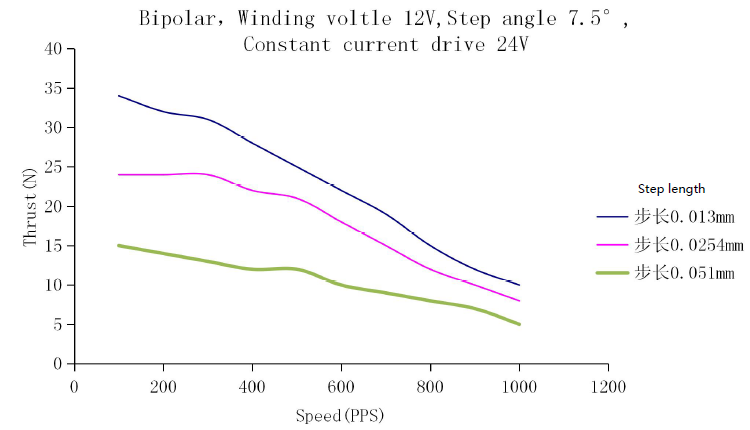

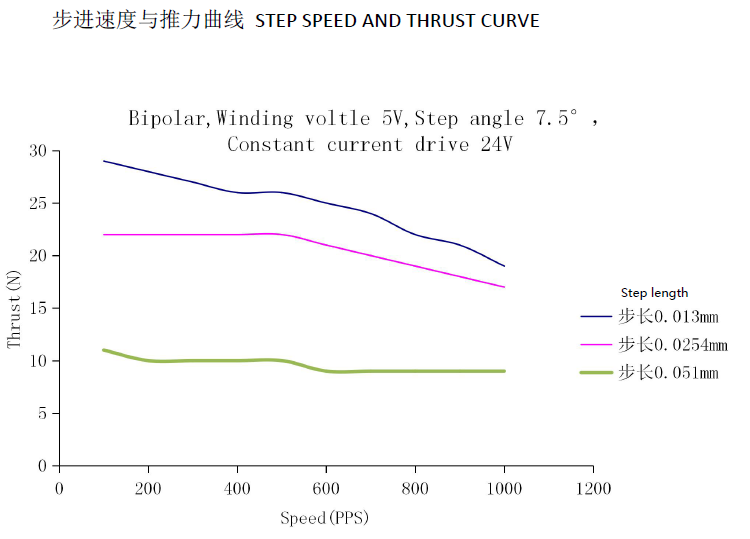

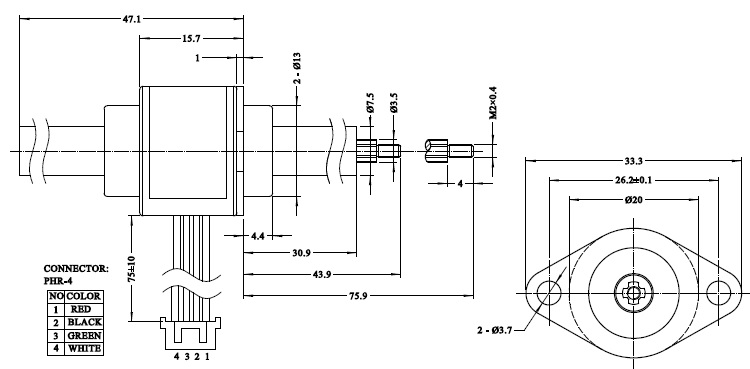

| Mounting Aperture | φ3.7mm (Through Hole) |
| Axial Height | 25.9 Mm |
| Insulation Class | Class e |
| Lead Wrie | Ul 1061 Awg26 |
| Oem & Odm Service | Available |
Motor type reference：

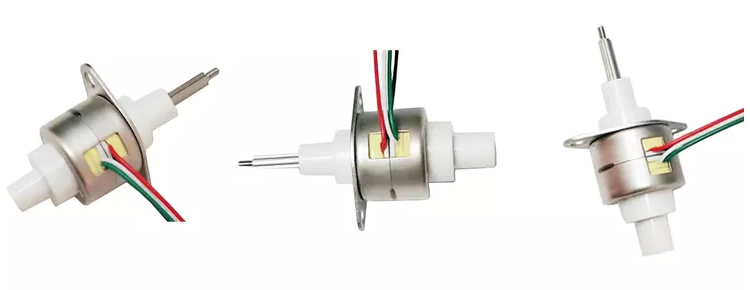

CAPTIVE

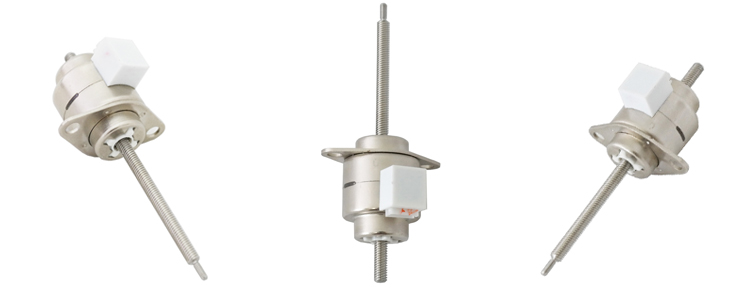

Non Captive

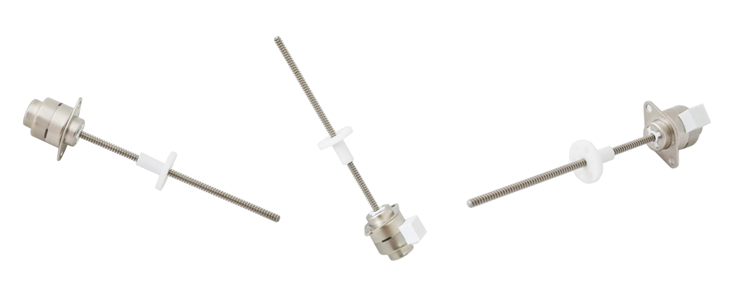

External
