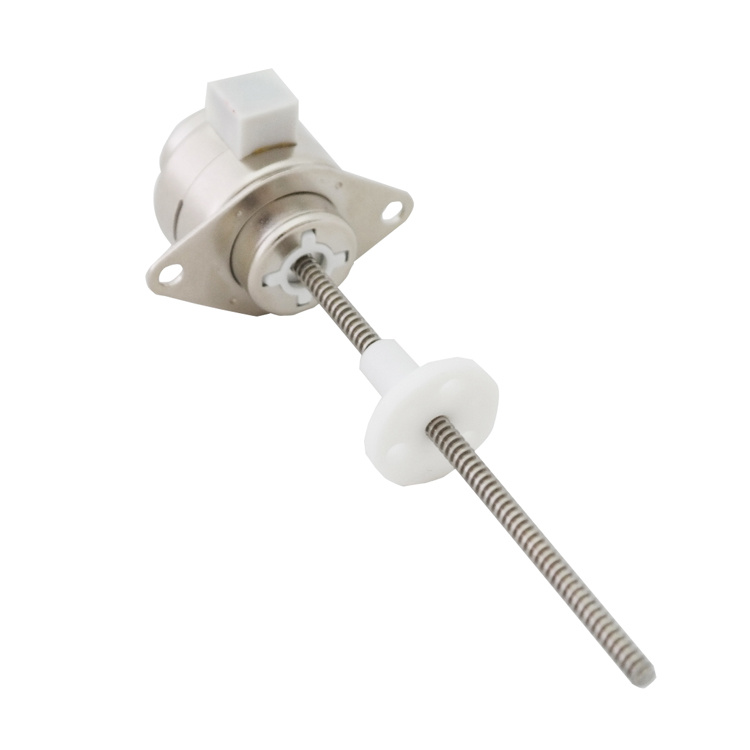

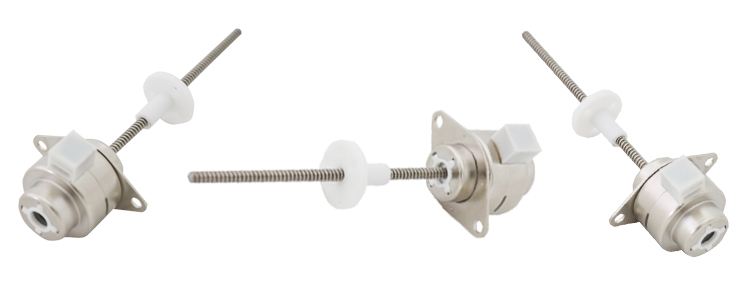

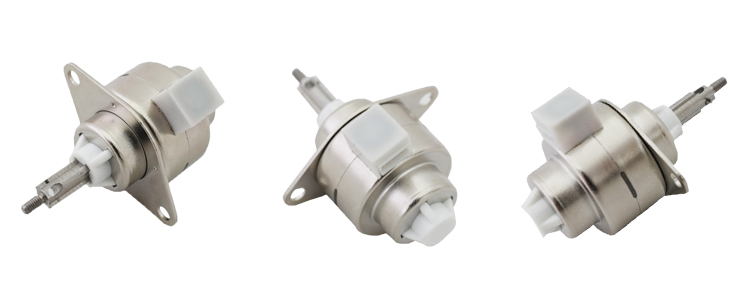

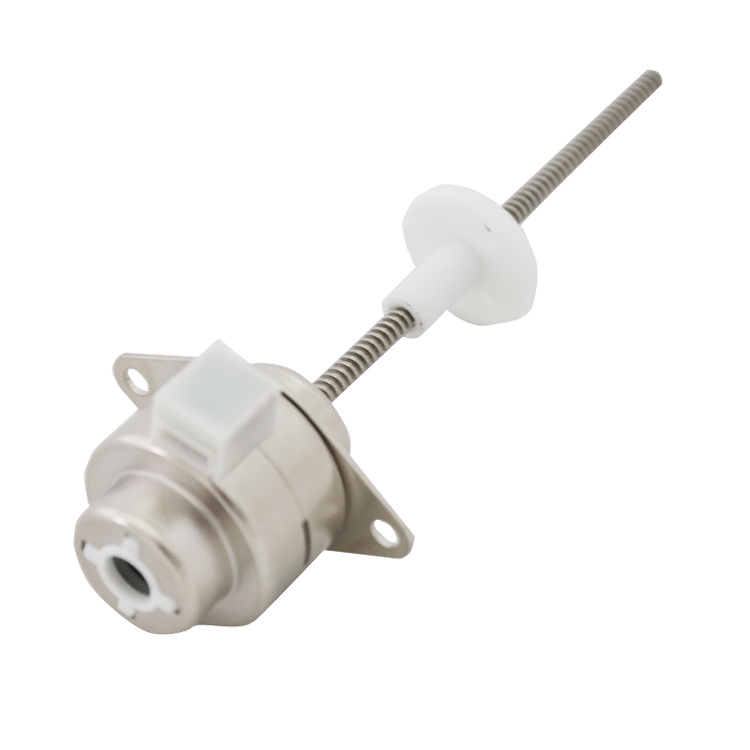

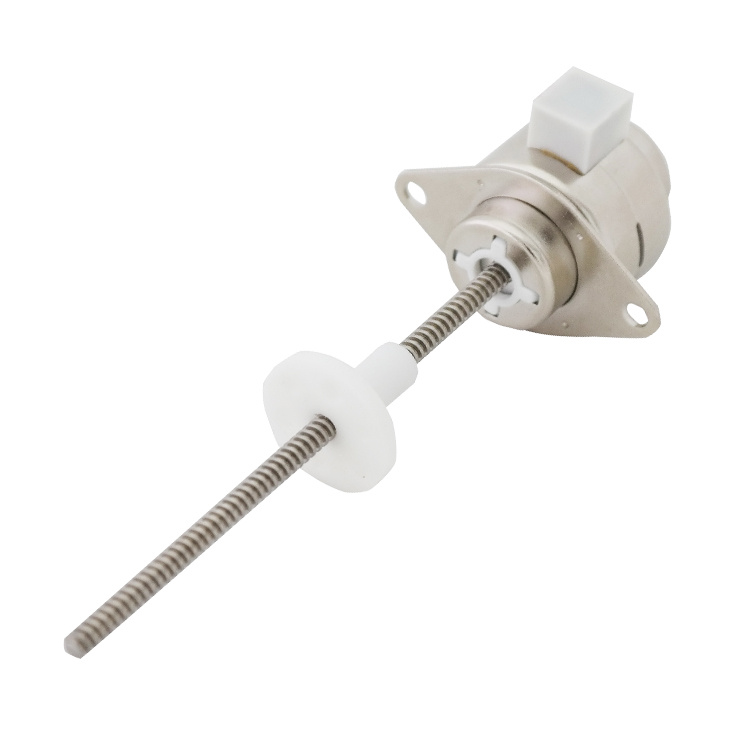

VSM25L-24S-6096-31-01 is an externally driven stepping motor with guide screw. When the rotor operates clockwise or counterclockwise, the lead screw will rotate in the mechanism, and the screw rod will not move up and down.
The stepping angle of the stepping motor is 15 degrees, and the lead spacing is 0.6096mm. When the stepping motor rotates for one step, the lead moves 0.0254mm. Motor screws can be customized as matching nuts.Conventional nuts are made of POM and copper nuts.
This product is a patented product of the company. It converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.
At the same time, the external wiring part can use connecting wires, outlet boxes, etc. according to customer requirements.
Our team has more than 10 years of experience in stepping motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Customers’ needs are our efforts, please feel free to contact us！

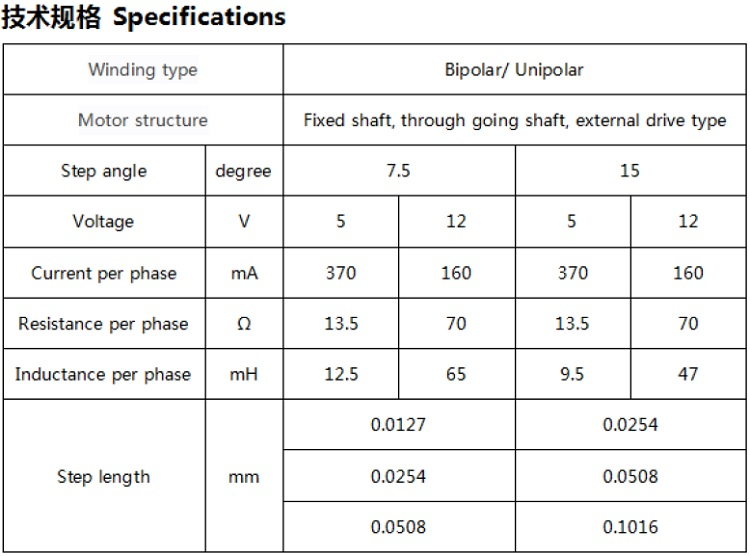

| Product name | 25mm linear stepper motor |
| Model | Vsm25l-24s-6096-31-01 |
| Power | 3.85w |
| Voltage | 5v |
| Phase current | 370ma |
| Phase resistance | 13.5(土10%) ohm / 20c |
| Phase inductance | 9.5（±20%) mh i lkhz |
| Step angle | 15° |
| Screw lead | 0.6096 |
| Step travel | 0.0254 |

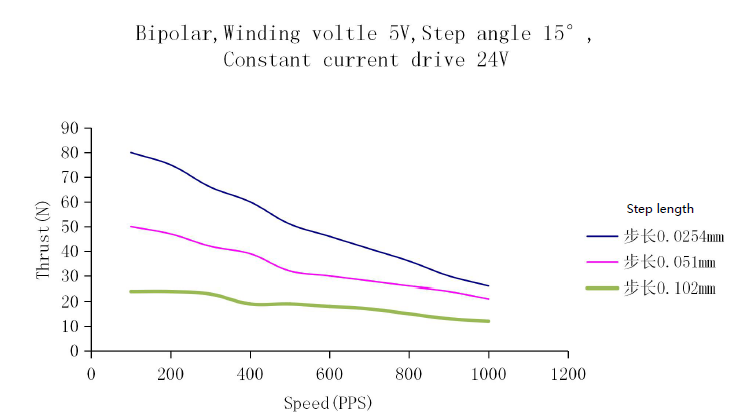

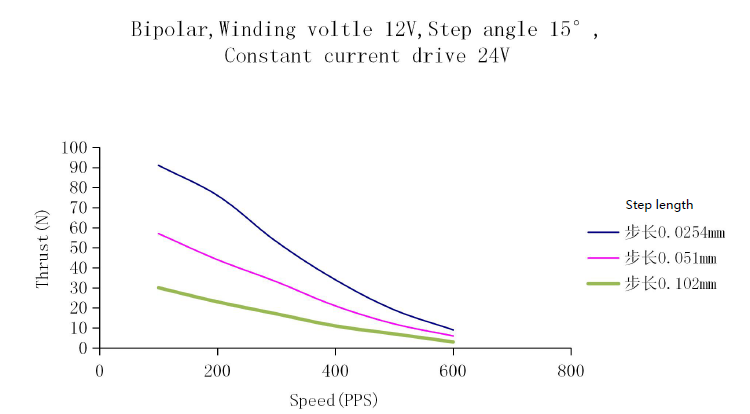

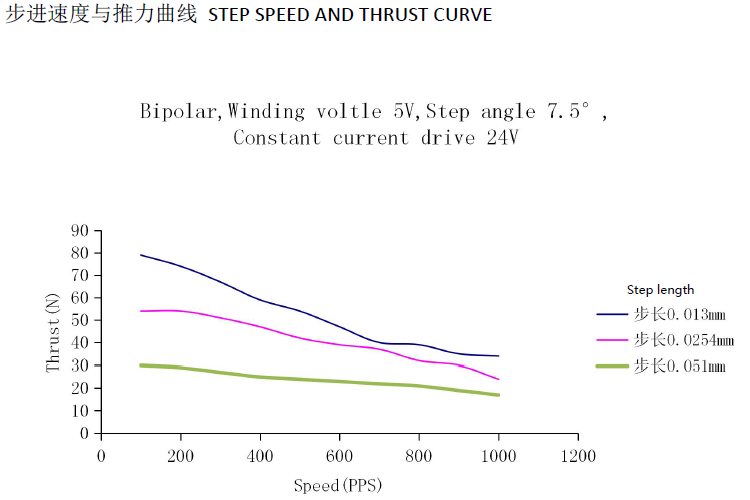

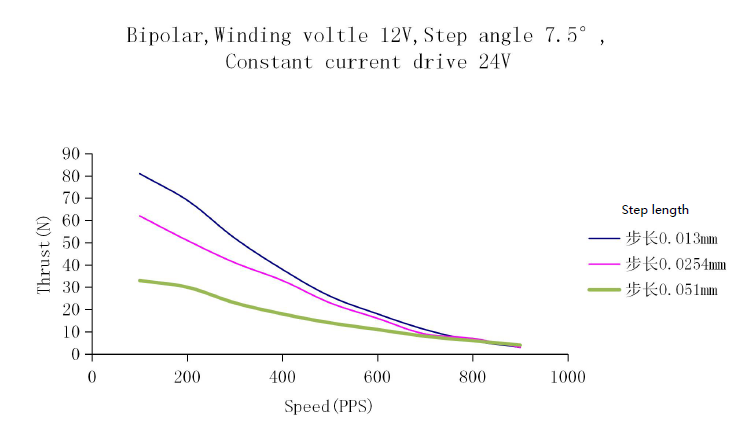

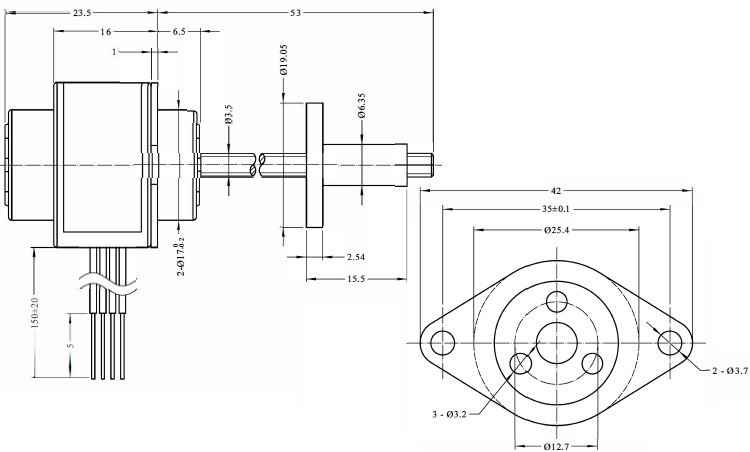

| Linear force | 70n/200pps |
| Screw length | 53mm |
| Oem & odm service | Available |

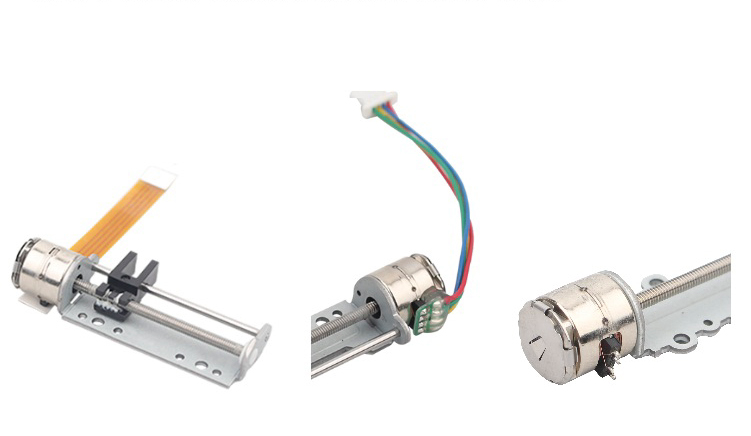

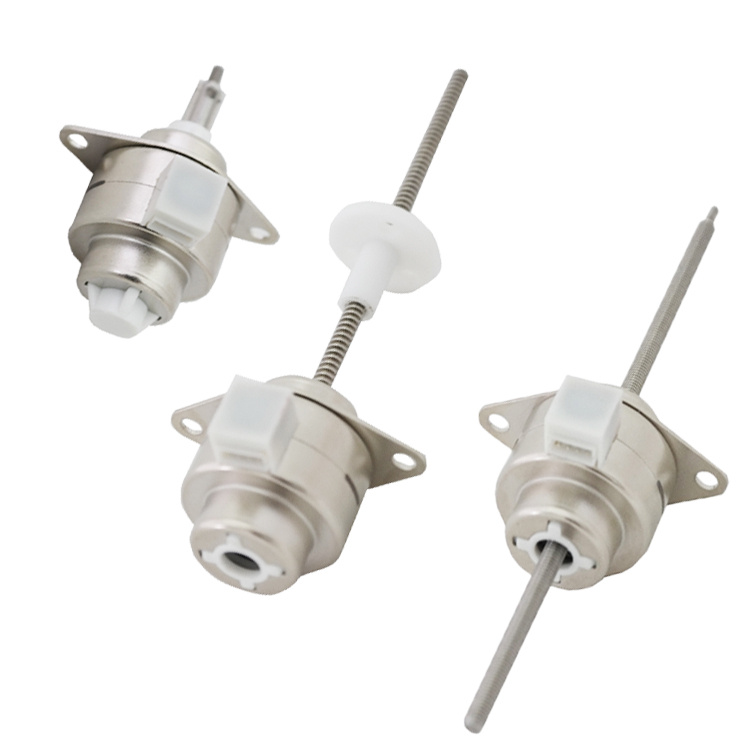

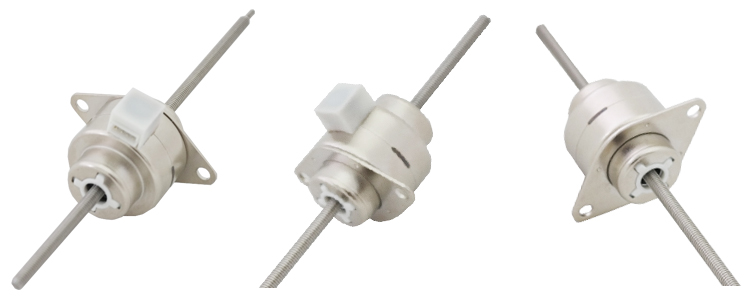

Motor type reference:
CAPTIVE
Non Captive
External
Customization service:
Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor.
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.
Thread length：Can be customised on request
Screw and bracket：The length of the screws and brackets can be customised to suit the assembly and itineraryavel requirements, and the structure of the brackets can be tailored to specific needs.

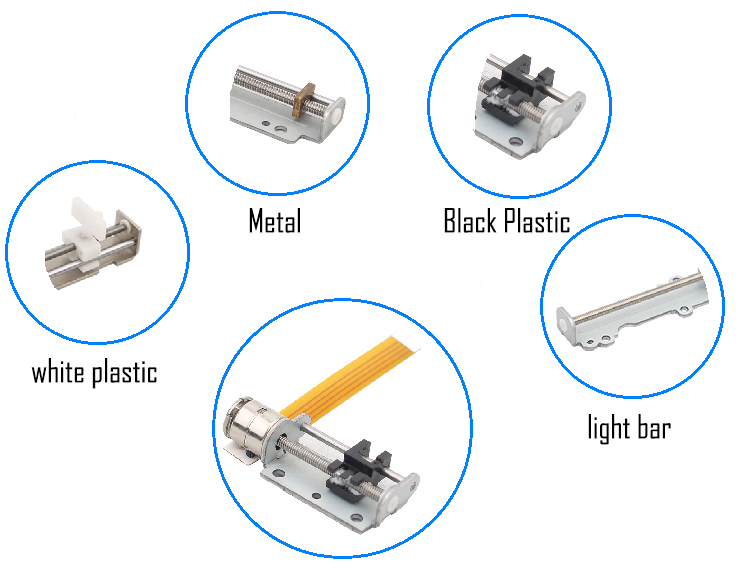

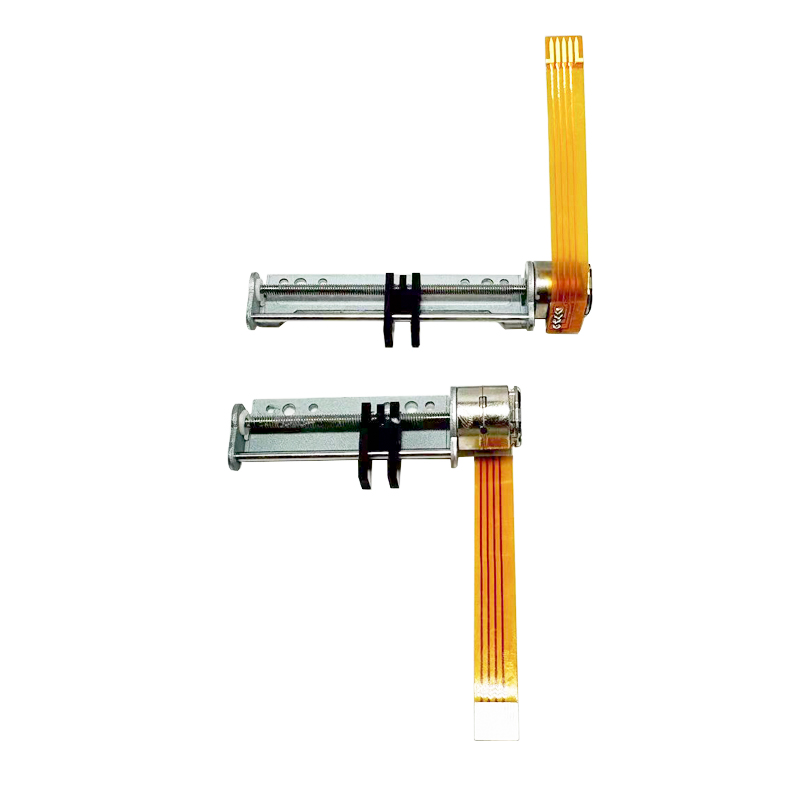

Linear stepper motor of slider: Plastic slider special claw design, also can be customised metal slider
