| Model | SW4025 |
| Brand | Vic-Tech |
| Motor type | SW4025 underwater motor with propeller |
| Underwater thrust | 7kg-9kg |
| Weight | 310g |
| Run directio | CW/CCW |
| Driving Voltage | 24~36V |
| OEM & ODM Service | AVAILABLE |
| Minimum order quantity | 1 unit |
| Certification | Rohs |

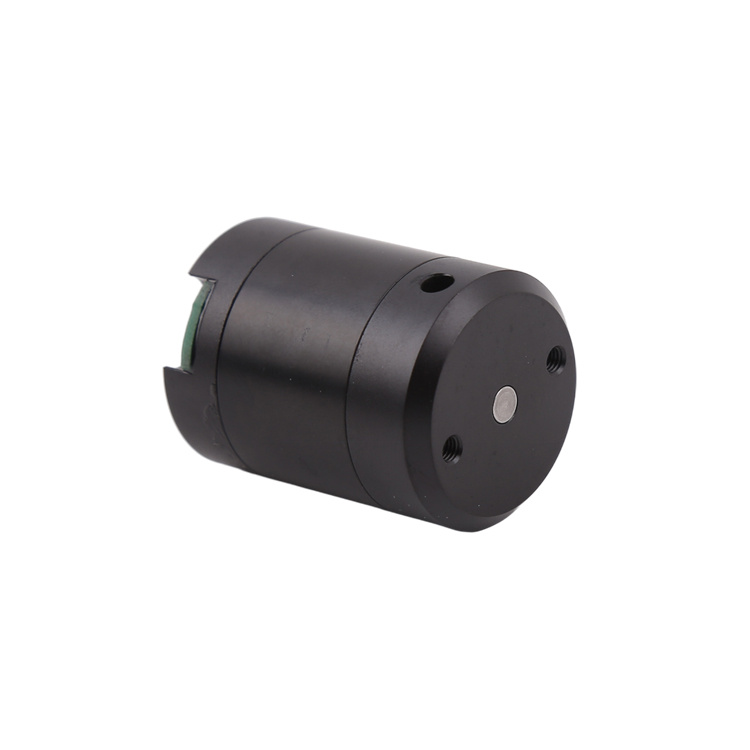

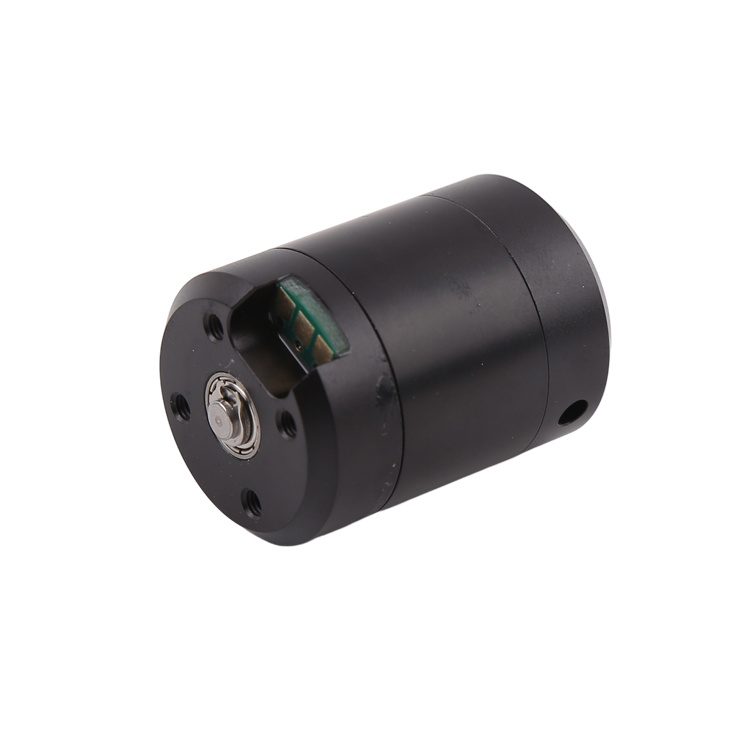

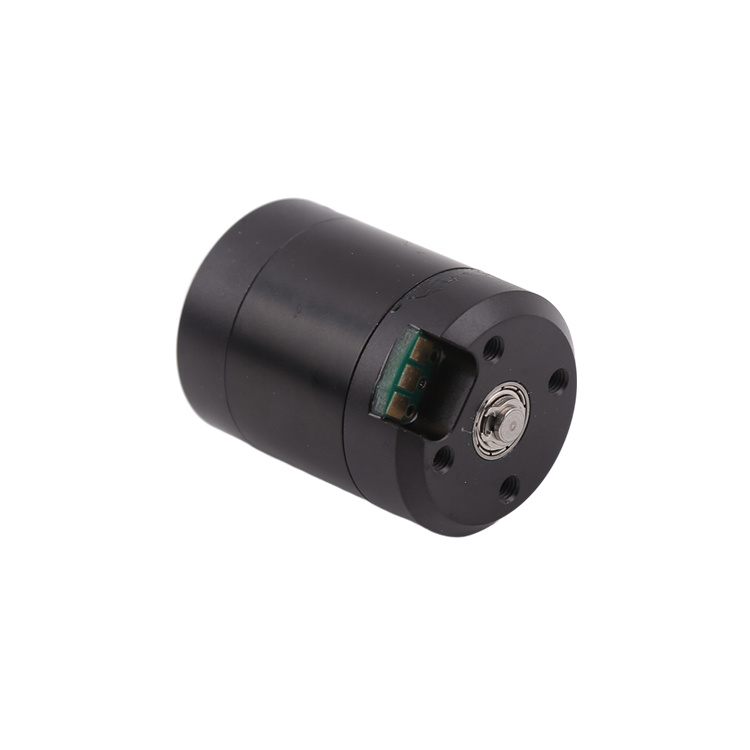

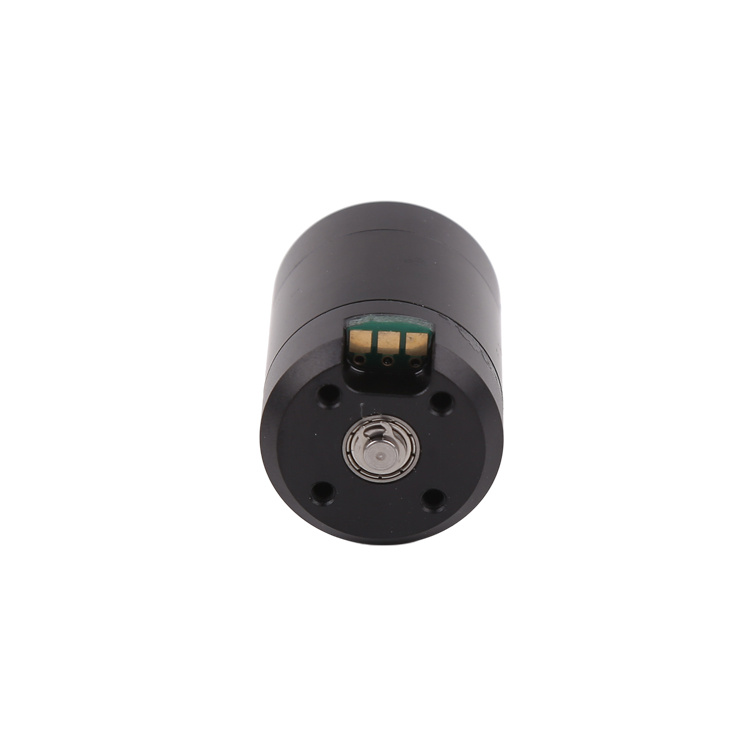

SW4025 underwater brushless motor is rated at 24~36 V DC, specially designed for underwater drones/robots.
This model has no propeller, users can design their own propeller and fix it with screws.
This is ordinary brushless motor, it can be driven by any ordinary drone ESC controller or ordinary brushless motor controller.
Beautiful shape, long life, low noise technology, high energy saving rate, high torque and high precision.
It is widely used in precision electronic equipment, automation equipment, water and underwater equipment, model aircraft drones and intelligent robots.
Before you place an order, please make sure you have the ability to design the propeller.
| Motor type: | Underwater brushless motor |
| Weight: | 310g |
| Underwater thrust: | 7KG~9KG |
| Rated voltage: | 24~36V |
| KV value: | 200~300 |
| Unload speed: | 7000 |
| Rated power: | 450~800W |
| Loaded current: | 15~23A |
| Rated torque: | 0.9 N*m |

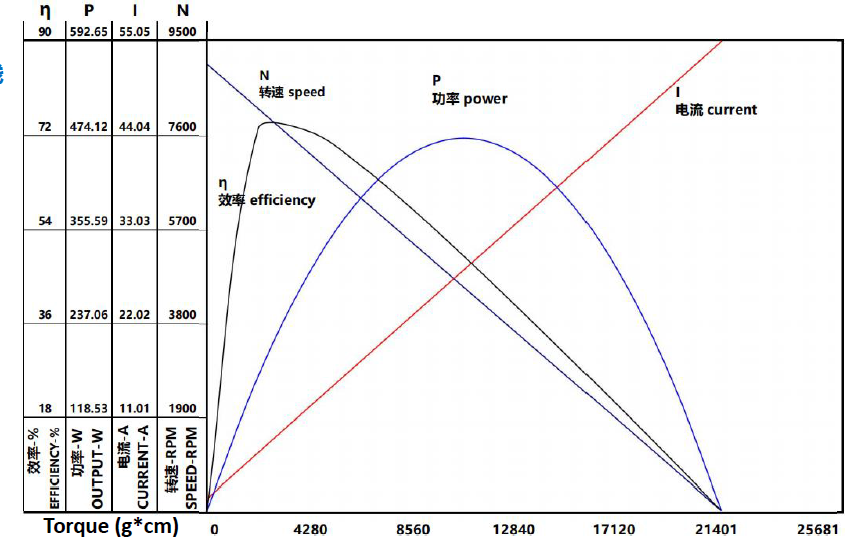

SW4025 Underwater Motor characteristic curve:
Customization service:
Available in long and short shaft versions.
Available in versions with and without stand.
Available in long and short versions.
Available in clockwise and counterclockwise versions
(CW and CCW).
KV values can be customized.
Widely used in precision electronic instruments, automation equipment, ROV Robots Drones, model drones and intelligent robots and other fields.
About underwater motors
Because brushless motor uses electronic commutation, so let brushless motor operation need to adapt to the motor voltage DC power supply, driver (ESC) and speed control signal.
Take a common model ESC as an example, first disconnect the power supply, connect the motor leads and speed signal line, the throttle travel to the highest (full duty cycle), connected to the power supply, you will hear the “drop” two sounds, the throttle travel quickly to the lowest position, and then you can hear the normal start of the motor “drop —- drop” sound, the throttle travel calibration is complete, you can start the motor normally. (The operation mode of ESC may be different for different manufacturers, please refer to the manual of the corresponding ESC model or consult the ESC manufacturer for details)
Customers can use regular drone ESC (Electrical speed control) to drive this motor.
We only produce motors, and we do not provide ESC.
Underwater motor advantages:
1、Waterproof and moisture-proof to avoid short circuit of electrical components inside the chamber.
2、Effective blocking of dust and particles to avoid bearing wear.
3、Keep the cavity dry to avoid the motor and motor being corroded and oxidized, resulting in poor contact or leakage.
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
