| Model | VSM0632 |
| Brand | Vic-Tech |
| Motor type | 6mm Slider linear stepper motor |
| Current / phase | 100mA |
| Driving Voltage | 4.6V |
| Coil resistance | 40Ω±10% |
| Step angle | 18 |
| Minimum order quantity | 1 unit |

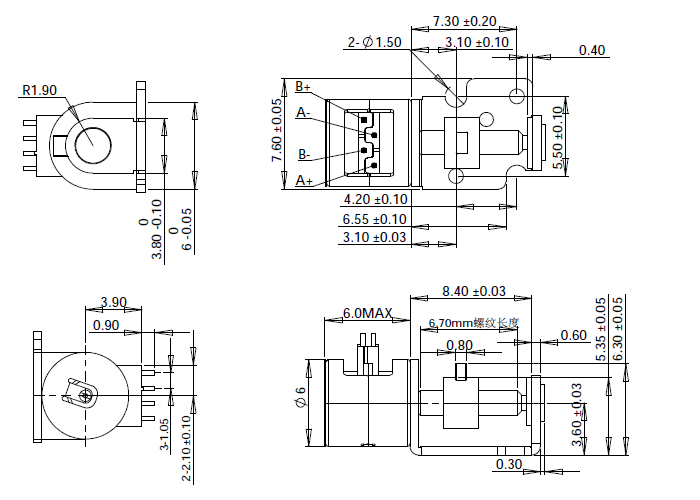

| Size | DIA8*L33mm |
| Certification | Rohs |

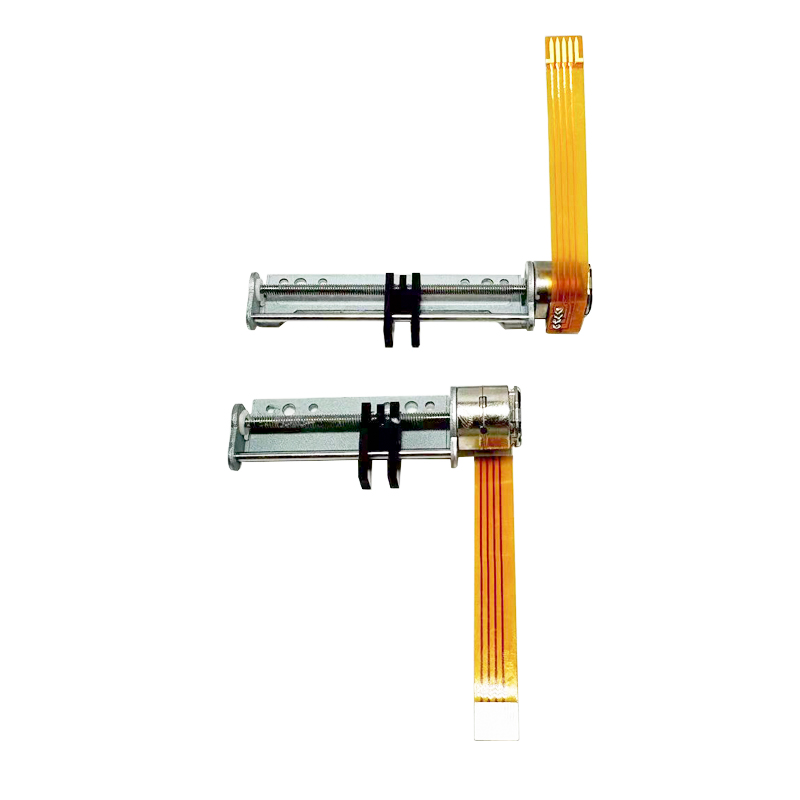

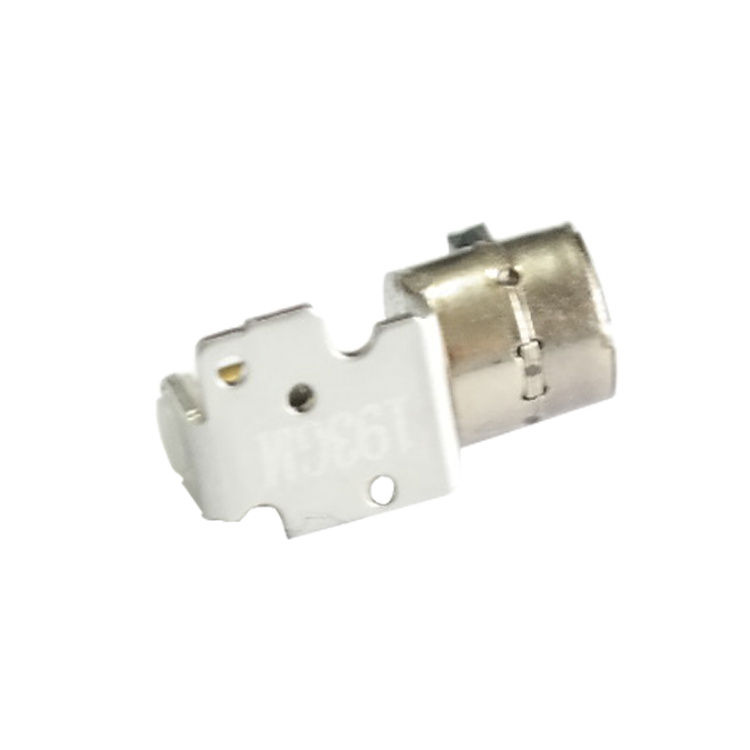

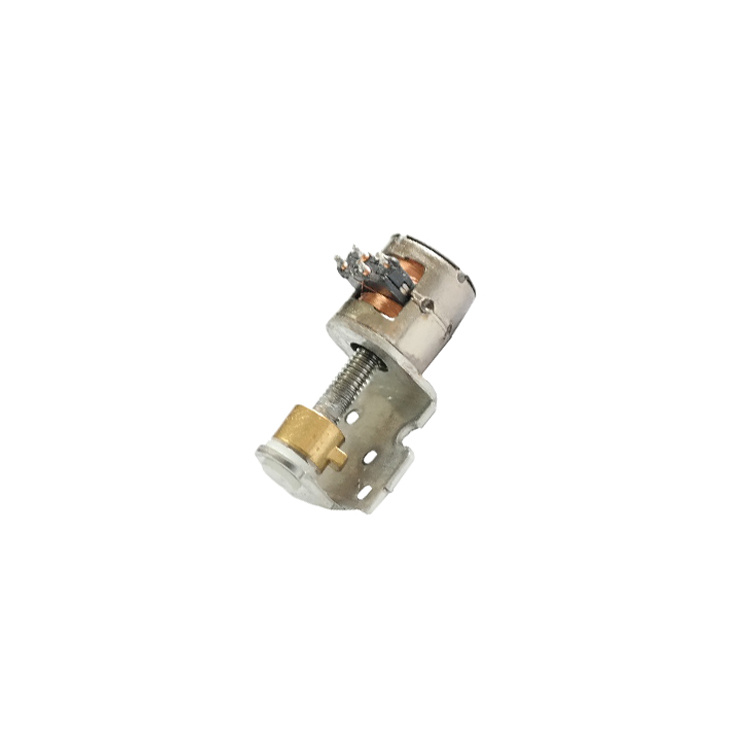

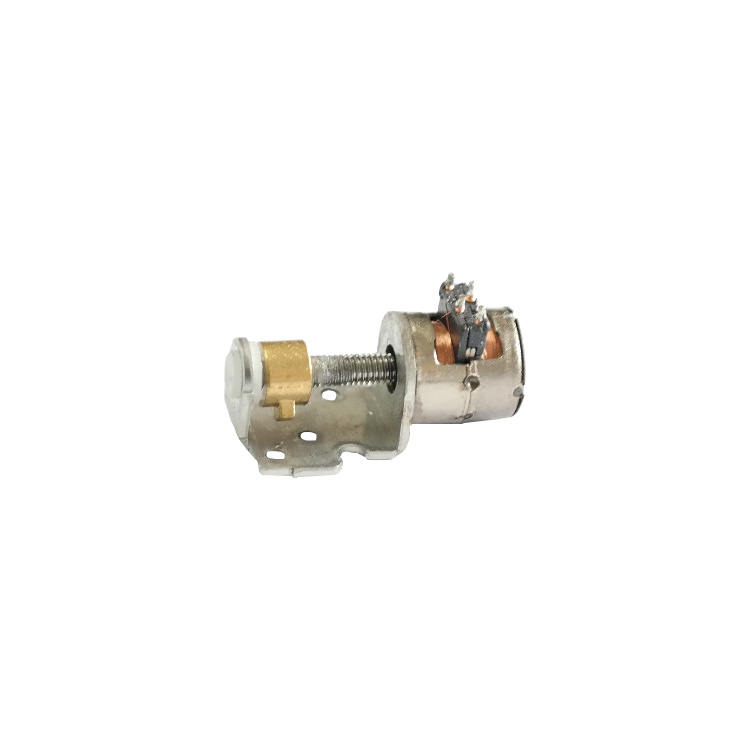

VSM0632 is a precision micro stepping motor. The screw pitch of the output shaft is M1.7P0.3mm, and the screw is rotated into thrust through the screw and screw support.
The basic step angle of the motor is 18degrees, and the motor runs 40 steps every week, so the displacement resolution can reach 0.015mm, achieving the goal of precision control.
Because of its small size, high precision, easy control and other excellent characteristics, it is applied to precision equipment.
The output of the motor is a bare needle. PCB, FPC, connecting wire and other output connection methods can be customized according to customer needs
| Product Name | 6mm Micro Linear Stepper Motor |
| Model | VSM0632 |
| Rated Voltage | 4.6 v |
| Coil Resistance | 40ω±10% |
| Phase | 1-2 Phase |
| Max. Starting Frequency | 1100 pps Min. (At 4.6 Vdc) |
| Max. Slewing Frequency | 2000 pps Min. (At 4.6 Vdc) |

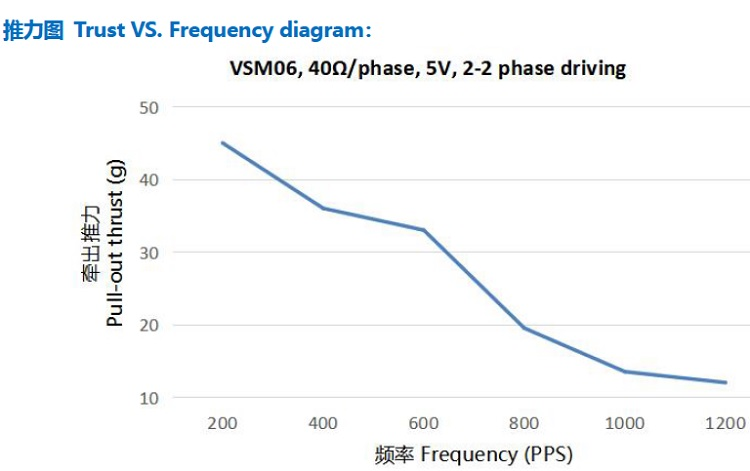

| Pull In Torque | 40g Min. (At 500 pps , 5.0v Dc) |
| Insulation Class | Class e For Coils |
| Insulation Strength | 300 v Ac For One Second |
| Insulation Resistence | 1.0 Mω (Dc 100 v) |
| Operating Temperature Range | -10 ~+60 ℃ |
| Oem & Odm Service | Available |

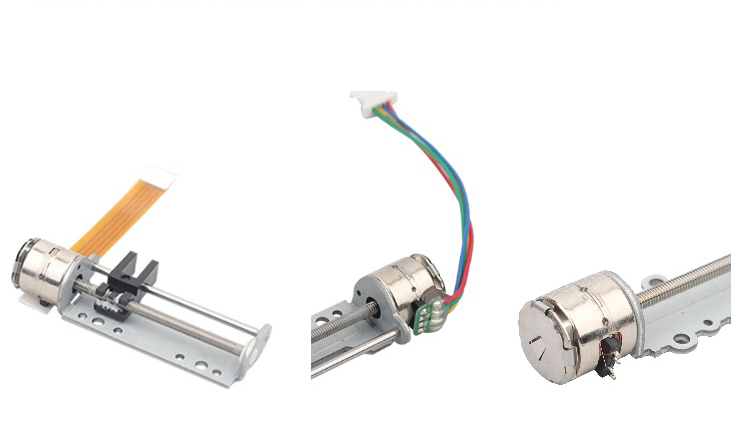

Wiring method:The motor input methods are FPC, connecting wire and optical pin respectively, which can be customised according to customers’ requirements.

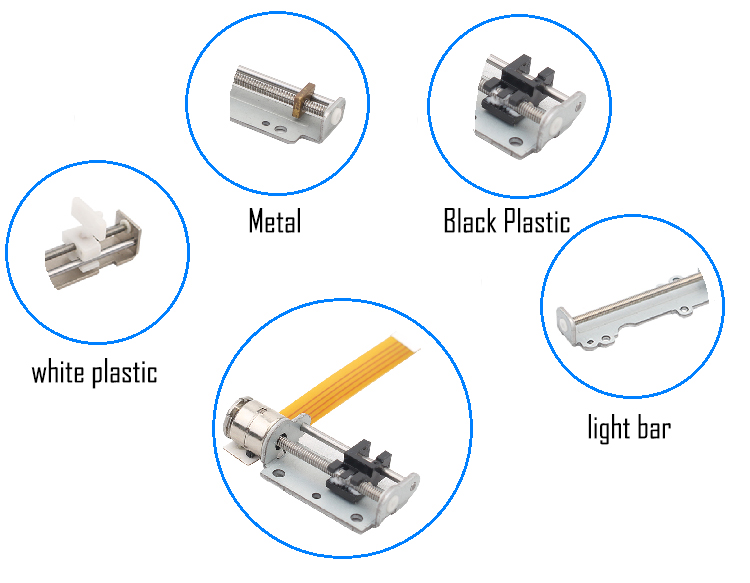

Screw and bracket：The length of the screws and brackets can be customised to suit the assembly and itineraryavel requirements, and the structure of the brackets can be tailored to specific needs.
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
Yes, we are a manufacture, and we produces mainly stepper motors.
Our factory is located in Changzhou, Jiangsu. Yes, you are very welcome to visit us.
No, we don’t provide free samples. Customers won’t treat free samples fairly.
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
