| Brand | Vic-Tech |
| Motor type | N20 worm gearbox with encoder |
| Run directio | CW/CCW |
| Gear ratio options | 1:21~1:1016 |
| Driving Voltage | 5V DC |
| OEM & ODM Service | AVAILABLE |
| Minimum order quantity | 1 unit |
| Size | 12mm*33mm |
| Certification | Rohs |

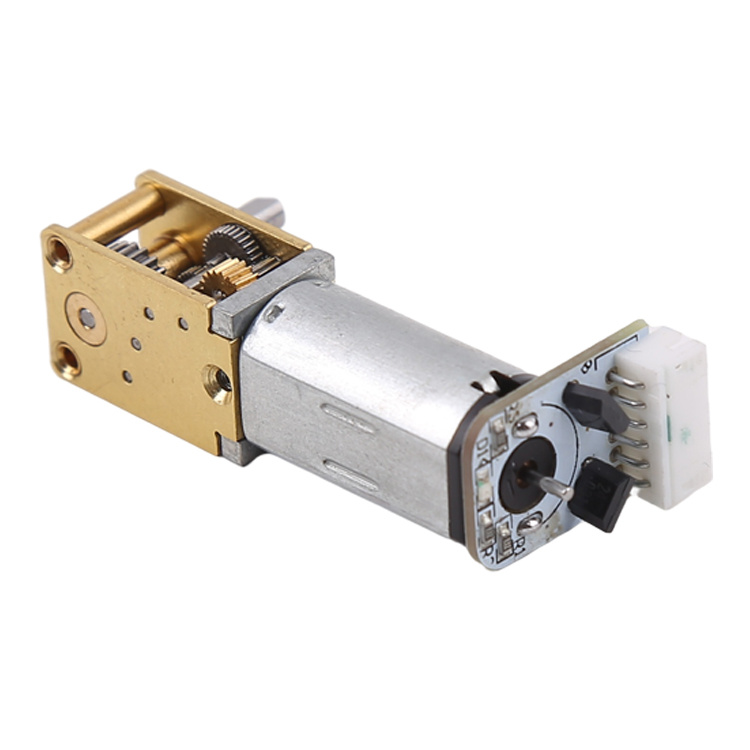

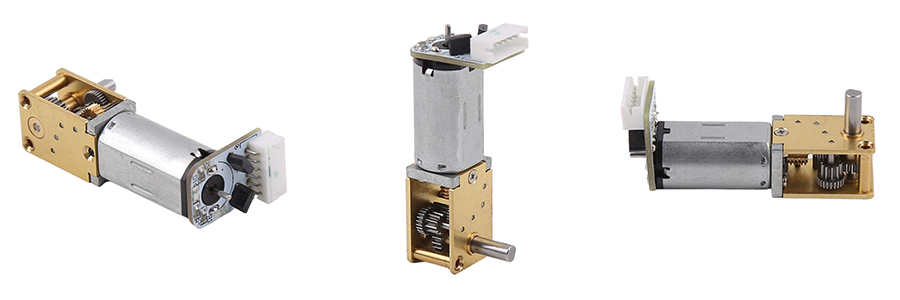

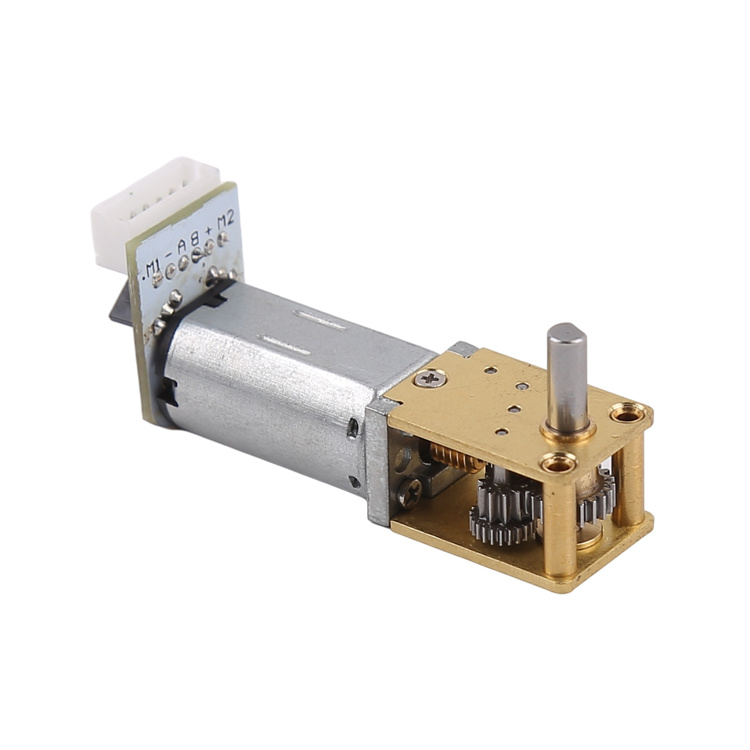

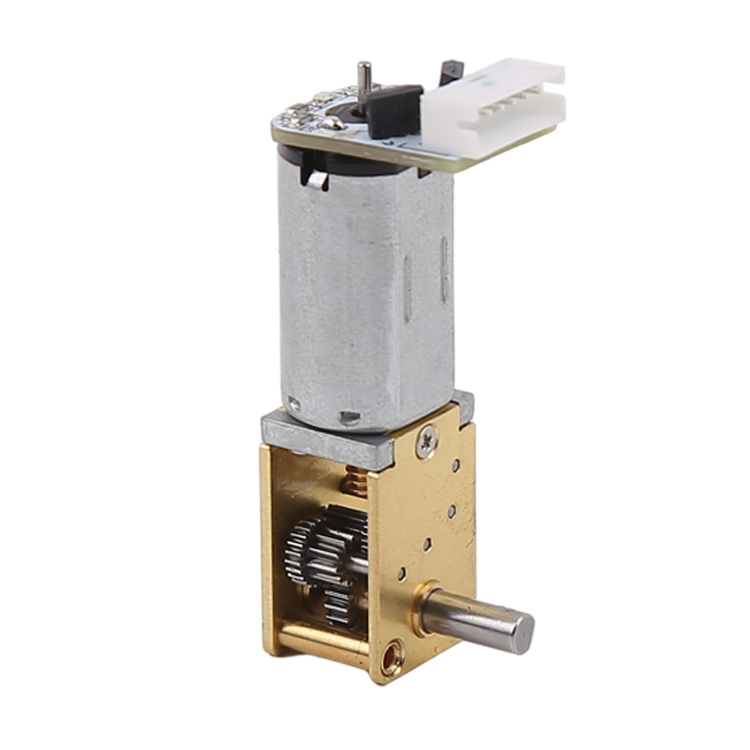

This is a DC worm gear motor with N20 encoder.
It is also available without encoder.

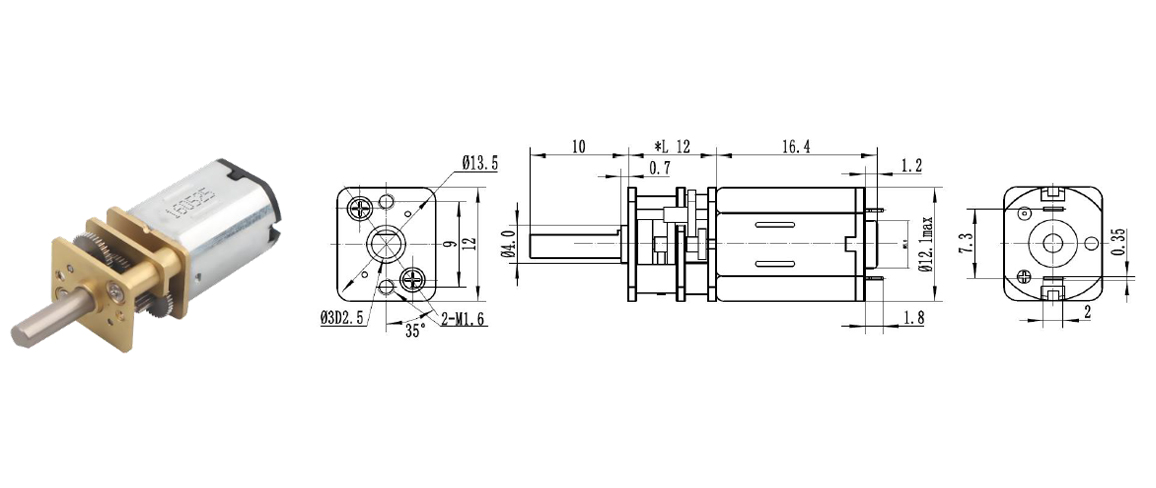

The outer diameter of the N20 motor is 12mm*10mm, the motor length is 15mm, and the length of the gearbox is 18mm (the gearbox can also hold an N10 motor or an N30 motor).
The motor consists of a metal brushed DC motor with a precision metal reducer. The worm gear has small size and large gear ratio.
The DC motor technology is relatively mature, inexpensive and simple to drive and control. With a gear box, the torque is greatly increased, the speed is reduced, and it is easy to control!
The following worm gearbox gear ratios are available.
1:21 1:42 1:118 1:236 1:302 1:399 1:515 1:603 1:798 1:1016
| Model No | N20-1812 Worm Gear motor |
| Size | 12mm*33mm |
| Gear ratio | 1:21~1:1016 |
| No-load seed(single motor) | 5000~8000rpm |

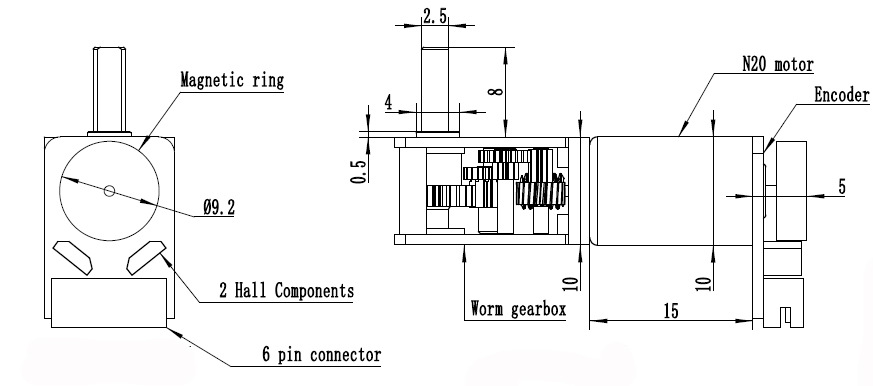

| Encoder type | magnet hall sensor |
| Resolution | 3ppr 5ppr 7ppr 12ppr |
| Shaft diameter | 3mm customizable |
| Available motor types | N20 N30 050 |
| Motor unload speed: | 5000-30000RPM |

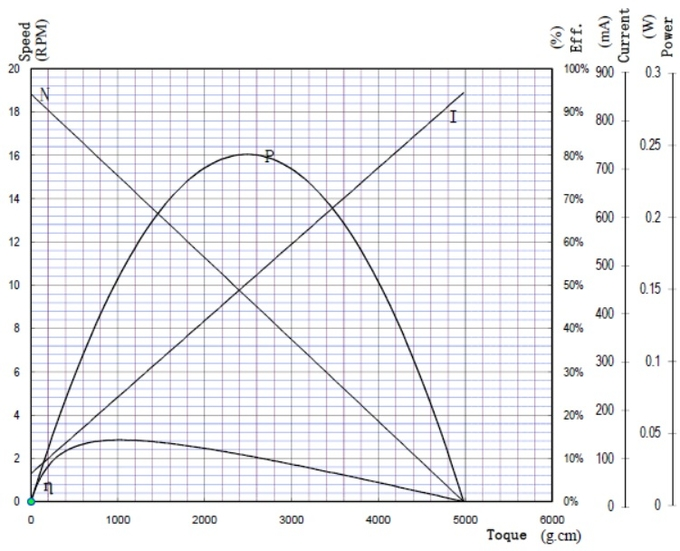

When changing the drive voltage, or changing the motor winding parameters, the motor will have different characteristics, this curve is for reference.

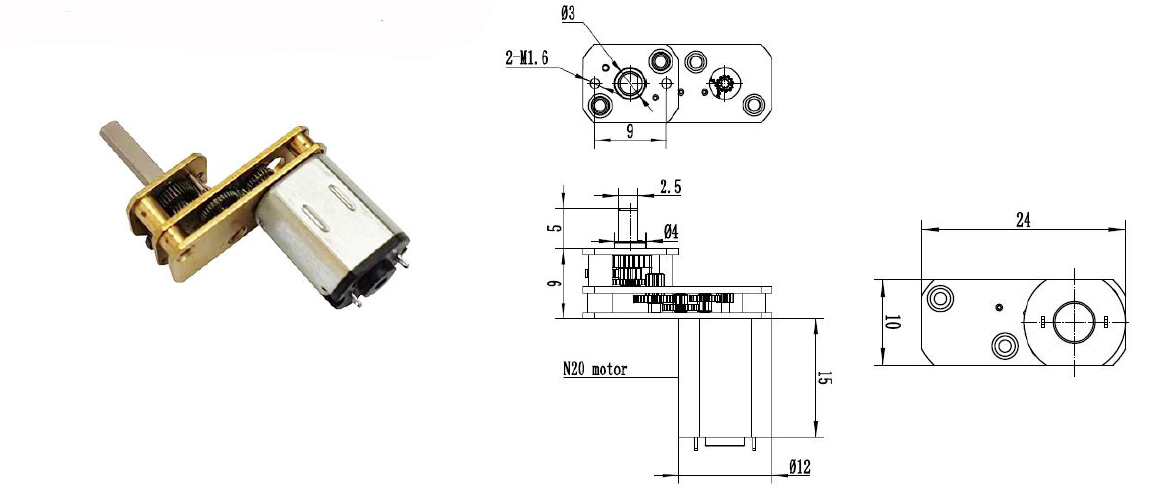

N20 DC motor can also be matched with GB12 gearbox, 1024GB gearbox， As shown in the figure：

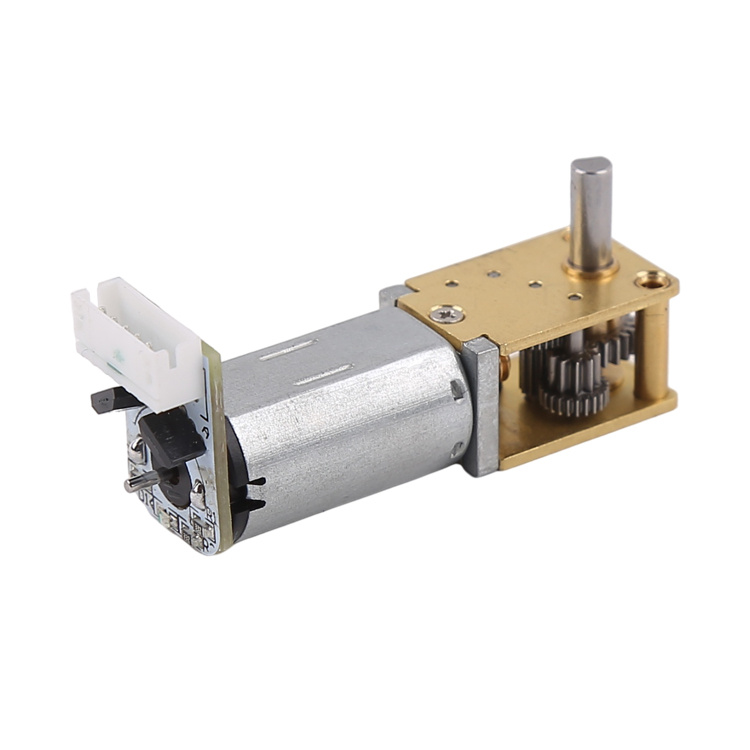

1.N20 DC motor + GB12 gearbox
2.N20 DC motor + 1024GB gearbox
Out of the shaft length (the tail can be out of the shaft matching encoder),The voltage,The rotational speed,Outlet mode,And connectors and so on
