Geared stepper motors are widely used in medical devices, industrial automation systems, and precision equipment because they provide accurate positioning, high torque output, and compact motion control. A micro geared stepper motor combines the precise control of a stepper motor with the torque amplification of a gearbox, making it ideal for applications where space, reliability, and accuracy are critical.
As industries continue to demand smaller, smarter, and more efficient mechanical systems, miniature motion solutions have become increasingly important. From medical pumps and laboratory instruments to robotic automation and optical equipment, micro geared stepper motors provide a reliable drive solution for precise movement control.

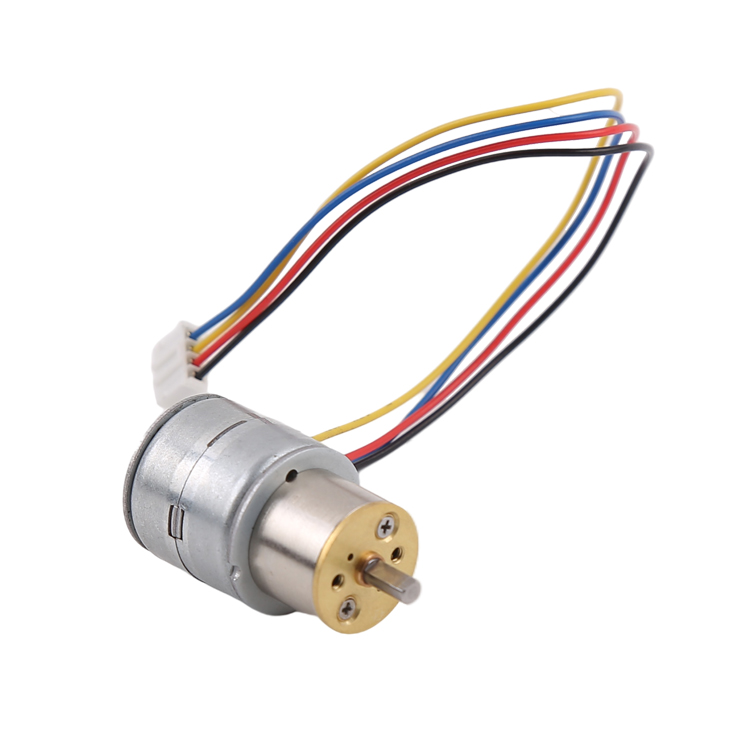

What Is a Geared Stepper Motor?

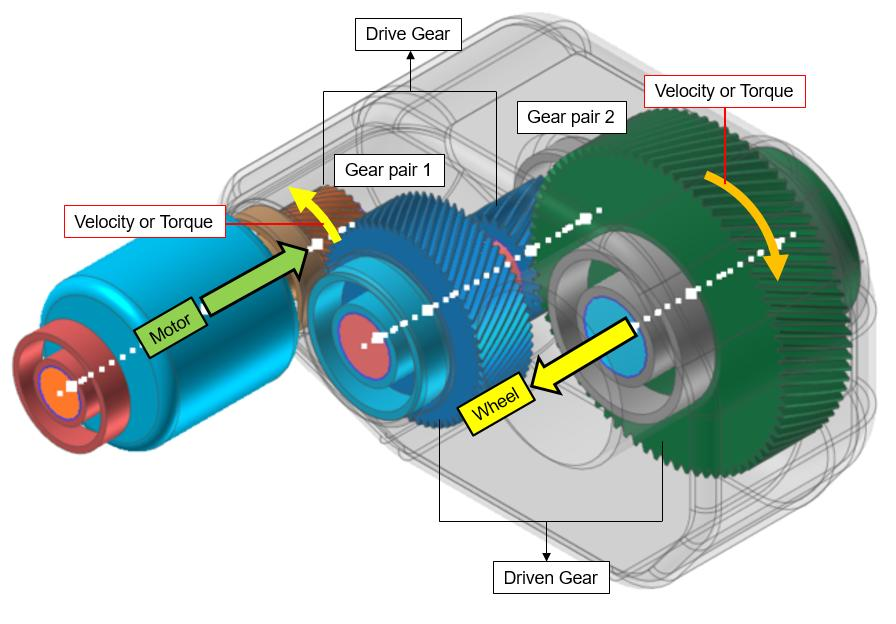

A geared stepper motor is a stepper motor integrated with a reduction gearbox. The gearbox decreases output speed while increasing available torque, allowing the motor to handle higher mechanical loads without significantly increasing its size.
Unlike conventional motors that rotate continuously, stepper motors move in controlled increments. Each electrical pulse sent to the motor driver corresponds to a specific rotation angle, enabling accurate open-loop positioning.

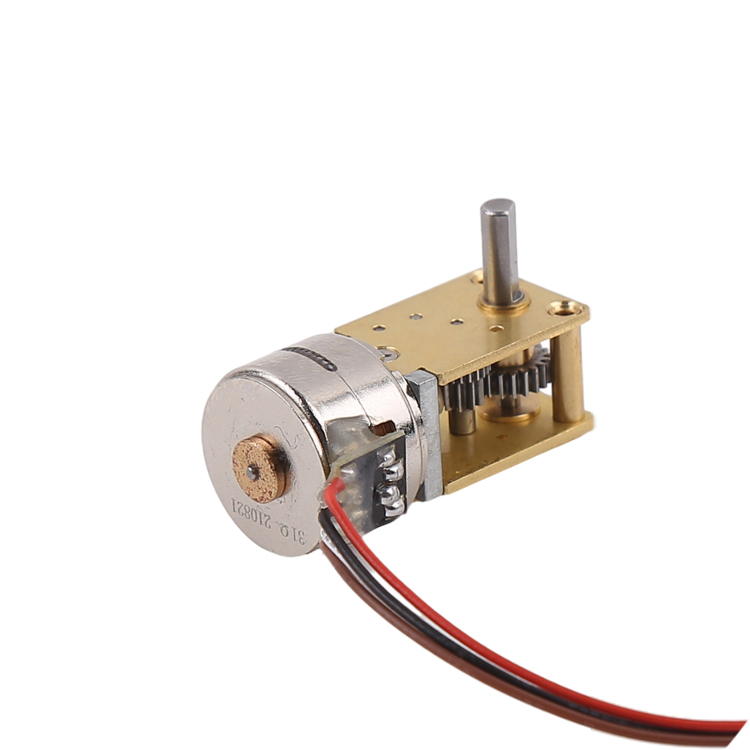

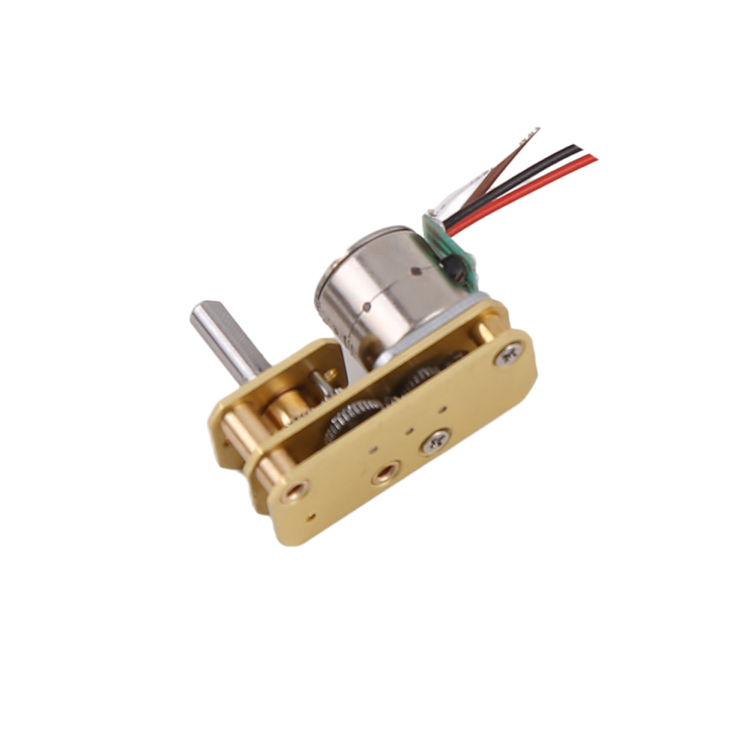

A typical micro geared stepper motor consists of:
- Miniature stepper motor:Provides precise angular movement through controlled electrical pulses.
- Gear reduction system: Increases torque and improves motion stability.
- Motor driver:Controls speed, direction, and positioning accuracy.
- Common gearbox types include:

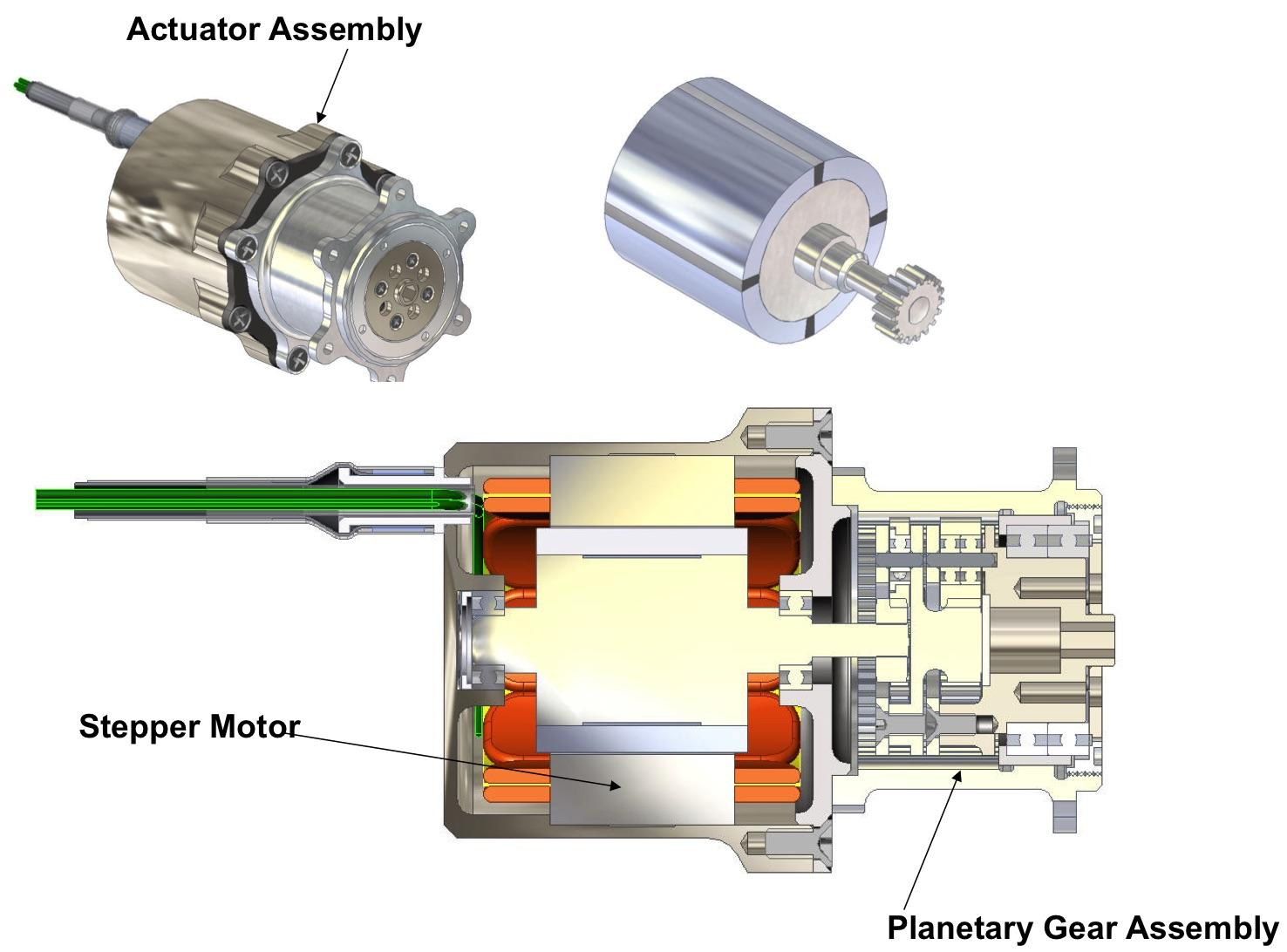

- Planetary gearboxes for high torque density
- Spur gearboxes for cost-effective applications
Worm gearboxes for high reduction ratios and self-locking performance
The combination of precision control and mechanical advantage makes geared stepper motors suitable for compact systems requiring reliable motion.
Why Micro Geared Stepper Motors Are Important for Precision Applications
Modern equipment is becoming smaller while requiring higher performance. Traditional motors may not provide sufficient torque or positioning accuracy in limited installation spaces.
A micro geared stepper motor solves these challenges by offering several advantages:
1. High Positioning Accuracy
Stepper motors are known for their precise incremental movement. When combined with a gearbox, they can achieve even finer control and improved load handling.
This makes them suitable for:
- Medical dispensing systems
- Optical adjustment mechanisms
- Laboratory automation equipment
- Robotic positioning platforms
2. Compact Size and Lightweight Design
Space limitations are common in modern equipment. Miniature motors allow engineers to create smaller and more efficient systems.
Applications requiring compact drive solutions include:
- Portable medical devices
- Automated inspection equipment
- Precision measurement instruments
- Small robotic mechanisms
3. Higher Torque Output
The gearbox increases torque output while maintaining a small motor footprint.
Benefits include:
- Better load capability
- More stable operation
- Reduced risk of missed steps
- Improved mechanical performance
Applications of Micro Geared Stepper Motors in Medical Equipment
Medical technology requires extremely reliable and accurate motion systems. Even small positioning errors can affect equipment performance.

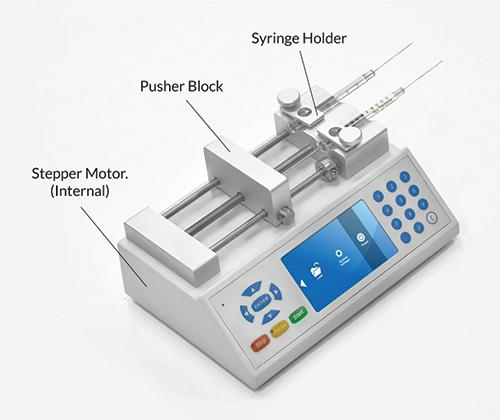

Medical Pumps and Fluid Control Systems
Micro geared stepper motors are commonly used in medical pumps because they can accurately control fluid movement.
Typical applications include:
- Infusion pumps
- Drug delivery systems
- Laboratory liquid handling equipment
- Diagnostic analyzers
- The precise step control allows manufacturers to achieve consistent flow rates and repeatable operation.
Medical Imaging Equipment
Precision positioning is essential in imaging systems. Geared stepper motors can provide controlled movement for:
- Sensor adjustment
- Optical component positioning
- Scanning mechanisms
- Their compact structure helps reduce equipment size while maintaining accuracy.
Laboratory Automation
Modern laboratories rely on automation to improve efficiency and reduce human error.
Micro geared stepper motors support:
- Sample positioning
- Robotic pipetting systems
- Testing equipment
- Automated analysis platforms
Applications in Industrial Automation
Industrial automation requires motors that can operate continuously with high reliability. Geared stepper motors are widely used because they provide predictable movement without requiring complex feedback systems.

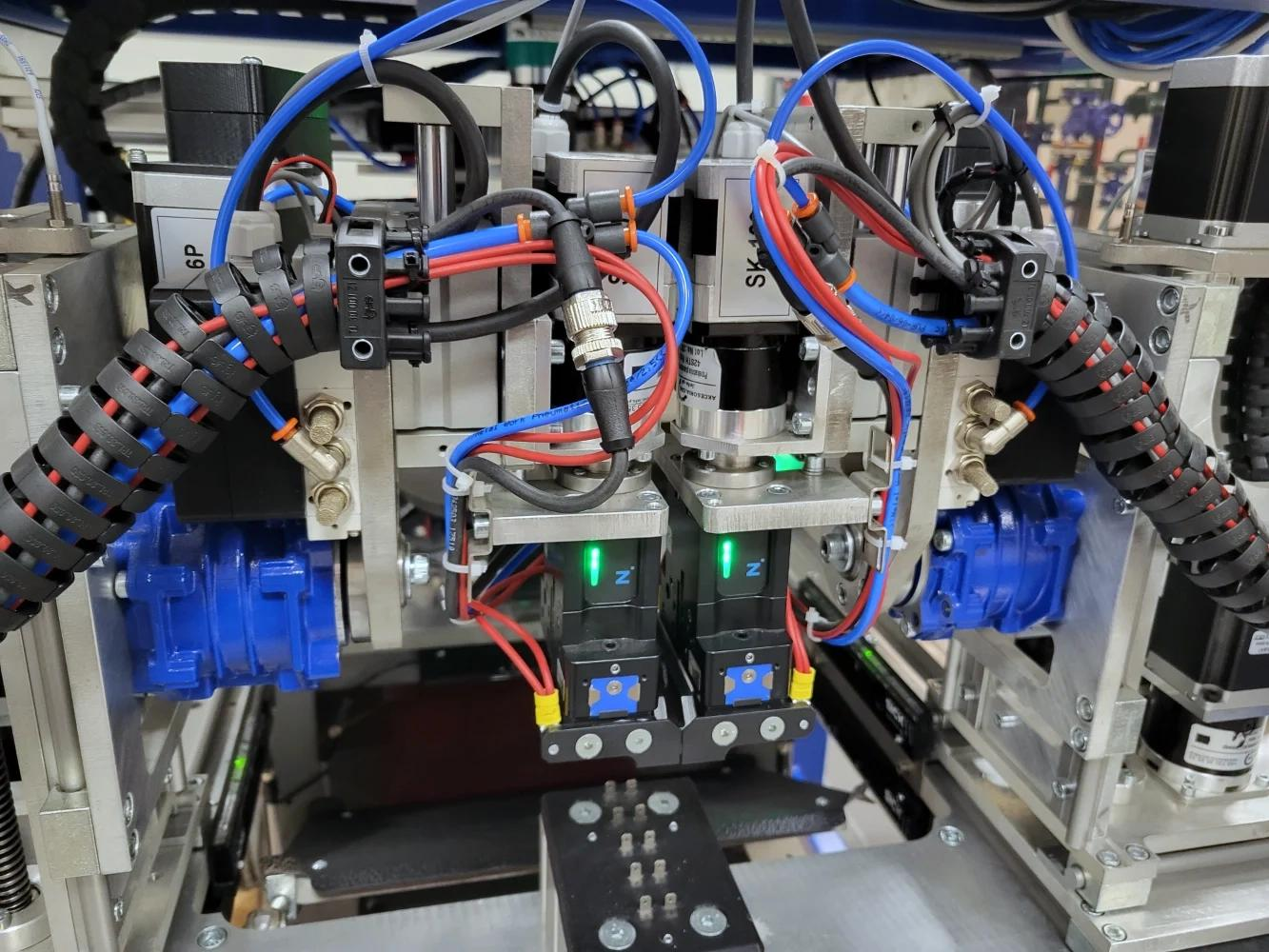

Automated Production Equipment
In manufacturing systems, micro geared stepper motors are used for:
- Material feeding
- Conveyor adjustment
- Labeling machines
- Packaging systems
- Their precise movement ensures consistent production quality.
Robotics and Actuation Systems
Robotic systems require compact actuators capable of accurate positioning.
Applications include:
- Robotic joints
- Grippers

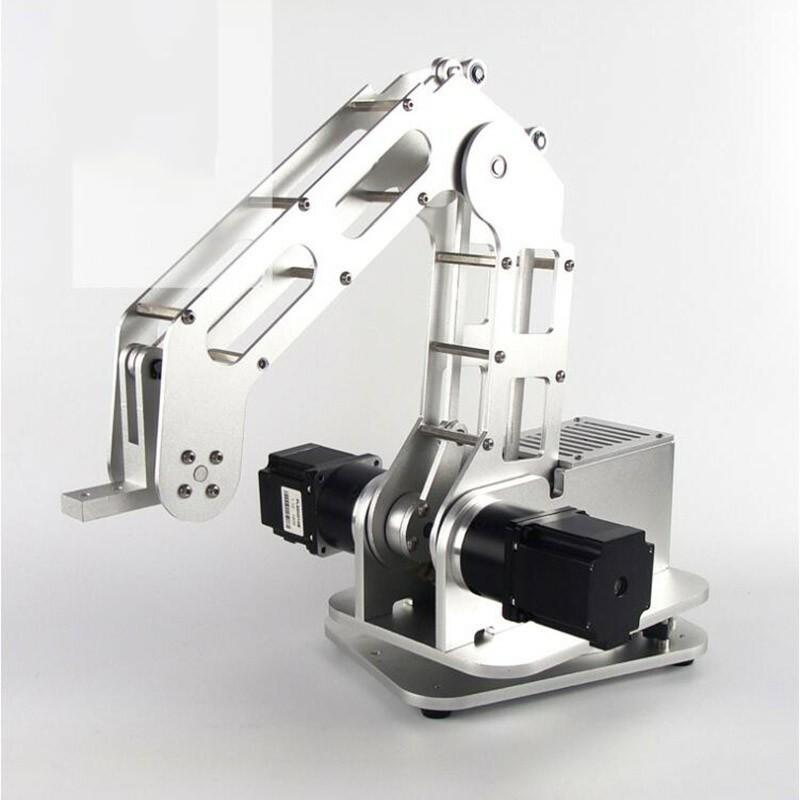

- Small robotic arms
- Automated assembly tools
A micro geared stepper motor provides a balance between torque, accuracy, and cost, making it suitable for compact robotic mechanisms.
Applications in Precision Equipment
Precision instruments require extremely stable and repeatable motion.
Optical Equipment
Optical systems often require tiny adjustments with high accuracy.
Micro geared stepper motors are used in:
- Lens positioning systems

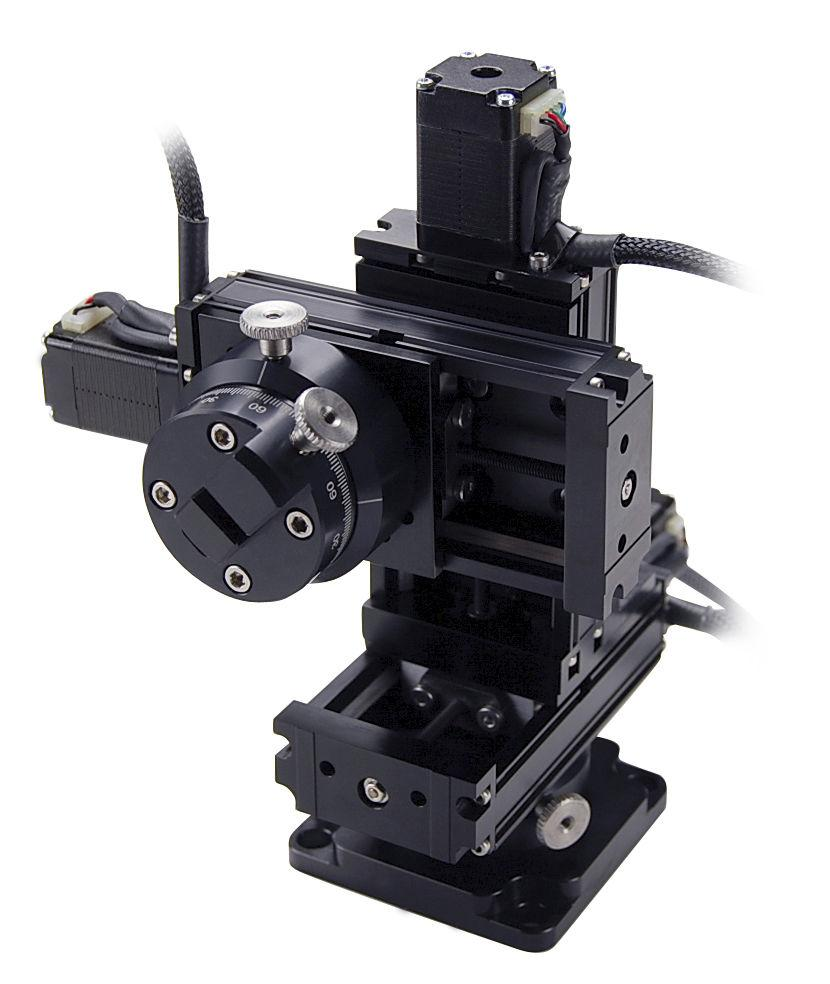

- Microscope stages
- Camera adjustment mechanisms
- Laser equipment
Measurement Instruments
Precision measurement devices depend on controlled mechanical movement.
Applications include:
- Coordinate measuring machines
- Testing equipment
- Calibration systems
- Scientific instruments
The ability to achieve repeatable positioning makes geared stepper motors valuable in these environments.
How to Select the Right Micro Geared Stepper Motor
Selecting a suitable motor requires evaluating application requirements carefully.
Important factors include:
| Selection Parameter | Description | Application Impact |
| Rated Torque | Maximum continuous output torque | Determines load capability |
| Gear Ratio | Speed reduction level | Affects torque and output speed |
| Step Angle | Movement resolution per pulse | Influences positioning accuracy |
| Backlash | Mechanical clearance in gearbox | Impacts precision performance |
| Operating Speed | Maximum working speed | Determines motion efficiency |
| Motor Size | Physical dimensions | Affects system integration |
| Noise Level | Operating sound performance | Important for medical equipment |
Before selecting a motor, engineers should consider:
- Required output torque
- Available installation space
- Required movement accuracy
- Operating environment
- Duty cycle and lifetime requirements
- Cost limitations
Micro Geared Stepper Motor vs Other Motor Types
Different applications require different motor technologies.
| Motor Type | Advantages | Limitations |
| Micro Geared Stepper Motor | Accurate positioning, compact size, high torque | Lower efficiency at very high speeds |
| Servo Motor | Excellent closed-loop accuracy | Higher cost and more complex control |
| Brushless DC Motor | High efficiency and fast operation | Requires advanced control electronics |
| Standard Stepper Motor | Simple control and affordable | Lower torque without gearbox |
For applications requiring precise low-speed movement and compact design, a micro geared stepper motor is often an efficient choice.
Future Trends of Geared Stepper Motors
The demand for miniature motion solutions continues to grow across medical, automation, and precision industries.
Future developments will focus on:
- Higher torque density
- Smaller motor dimensions
- Lower power consumption
- Improved gearbox accuracy
- Integrated sensors and feedback systems
- Customized motor designs for specific applications
As equipment becomes more intelligent and compact, manufacturers will increasingly rely on advanced micro geared stepper motor technologies.
Frequently Asked Questions About Micro Geared Stepper Motors
1. What is a micro geared stepper motor used for?
A micro geared stepper motor is used for applications requiring precise movement, compact size, and higher torque output. Common applications include medical equipment, automation systems, robotics, and precision instruments.
2. What are the advantages of geared stepper motors compared with standard stepper motors?
Geared stepper motors provide higher torque and better load control because the gearbox reduces speed while increasing mechanical output force.
3. How do I choose the correct gear ratio for a stepper motor?
The correct gear ratio depends on the required torque, output speed, positioning accuracy, and available installation space. Higher reduction ratios provide more torque but lower speed.
4. Are micro geared stepper motors suitable for medical devices?
Yes. Their accurate positioning, reliable operation, and compact design make them suitable for medical pumps, diagnostic equipment, and laboratory automation systems.
5. Do geared stepper motors require an encoder?
Many applications can operate without an encoder because stepper motors provide controlled positioning through pulse signals. However, systems requiring higher reliability may integrate feedback sensors.
6. Can manufacturers customize micro geared stepper motors?
Yes. Motor manufacturers can customize gear ratios, mounting dimensions, output shafts, voltage specifications, and performance parameters according to application requirements.
Key Takeaways
Micro geared stepper motors deliver precise positioning, increased torque, and compact size for advanced equipment applications.
Medical devices benefit from their repeatability, low noise operation, and accurate motion control.
Industrial automation systems use geared stepper motors for reliable indexing, feeding, and positioning tasks.
Precision equipment requires miniature motors with low backlash, stable performance, and customized mechanical designs.
Choosing the right motor requires evaluating torque, gear ratio, speed, accuracy, and operating environment.
Custom micro geared stepper motor solutions can help manufacturers optimize performance and reduce system complexity.
Conclusion
Geared stepper motors play an important role in modern medical equipment, industrial automation, and precision systems. With their combination of accurate positioning, compact structure, and increased torque output, micro geared stepper motors provide an effective solution for demanding motion control applications.
Whether used in medical pumps, robotic systems, laboratory automation, or optical instruments, these miniature motors help engineers achieve reliable and efficient mechanical performance.
Welcome to contact us for customized stepper motor solutions tailored to your specific application requirements. We can provide professional support in motor selection, gearbox design, and customized motion solutions.
